Type 4X Diecast Aluminum Enclosures R100 Series

aluNORM - Watertight, Thick Wall

English | Français

Key Features:

  • Material - Aluminum die-cast: G AI SI 12 / DIN 1775
  • Captive stainless steel lid screws
  • Neoprene oil and petrol resistant gasket standard.
  • Rated IP66 and CSA certified, UL Listed Type 4, for use with industrial control equipment.
  • Operating temperature range is -40ºC up to +80ºC (-40ºF to 176ºF)
  • Single-channel fastening system.
  • Specially developed external mounting feet are made from zinc diecast. Can be turned through 90º. The fastening holes have engagement lugs for this purpose.
  • All sizes have inner blind holes.
  • Inner mounting panel of galvanized steel available as an accessory for most sizes.
  • Textured polyester powder coat is available in beige (RAL7032) or light gray (RAL7035). Enclosures can be supplied unpainted on special order.
Features
  1. Lid screws and mounting holes outside of the gasket seal.
  2. Space-saving single channel mounting. The same channel is used for enclosure mounting and lid assembly screws.
  3. Internal mounting shelves placed along both sides of enclosure include blind holes and grounding screws.
  4. Captive stainless steel lid screws.
  5. Enclosure holes threaded for easy installation and disassembly.

Patented Single Channel System

  • Provides larger interior space than dual channel enclosures.
  • Uses the same enclosure hole for mounting the enclosure and fastening the lid.

Accessories (see table below for compatibility)


External Mounting Feet

Inner Panel

Hinge Kit

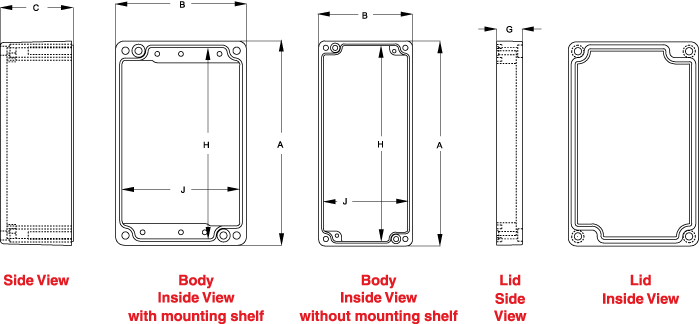

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Shallow Lid, Deep Body (R100 Series)

Part No (RAL 7032 Beige) Part No (RAL 7035 Light Gray) Width (mm) Length (mm) Depth With Lid (mm)
R100-060-000 R100-060-035 65 50 40
R100-062-000 R100-062-035 65 65 40
R100-064-000 R100-064-035 65 100 40
R100-066-000 R100-066-035 65 150 40
R100-080-000 R100-080-035 80 80 60
R100-082-000 R100-082-035 80 120 60
R100-084-000 R100-084-035 80 160 60
R100-100-000 R100-100-035 100 100 80
R100-102-000 R100-102-035 100 150 80
R100-104-000 R100-104-035 100 200 80
R100-120-000 R100-120-035 120 120 100
R100-122-000 R100-122-035 120 180 100
R100-124-000 R100-124-035 120 240 100
R100-160-000 R100-160-035 160 160 100
R100-162-000 R100-162-035 160 240 100
R100-164-000 R100-164-035 160 320 100
R100-166-000 R100-166-035 160 480 100
R100-200-000 R100-200-035 200 200 120
R100-202-000 R100-202-035 200 300 120
R100-204-000 R100-204-035 200 400 120
R100-240-000 R100-240-035 240 240 120
R100-242-000 R100-242-035 240 360 120
R100-244-000 R100-244-035 240 480 120
R100-320-000 R100-320-035 320 320 120
R100-322-000 R100-322-035 320 480 120
R100-324-000 R100-324-035 320 640 120

Deep Lid, Shallow Body (R101 Series)

Part No. Width (mm) Length (mm) Depth With Lid (mm)
R101-080-000¹ 80 80 60
R101-082-000¹ 80 120 60
R101-084-000¹ 80 160 60
R101-100-000¹ 100 100 80
R101-102-000¹ 100 150 80
R101-104-000¹ 100 200 80
R101-120-000¹ 120 120 100
R101-122-000¹ 120 180 100
R101-124-000¹ 120 240 100
R101-160-000¹ 160 160 100
R101-162-000¹ 160 240 100
R101-164-000¹ 160 320 100
R101-166-000¹ 160 480 100
R101-200-000¹ 200 200 120
R101-202-000¹ 200 300 120
R101-204-000¹ 200 400 120
R101-240-000¹ 240 240 120
R101-242-000¹ 240 360 120
R101-244-000¹ 240 480 120
R101-320-000¹ 320 320 120
R101-322-000¹ 320 480 120
R101-324-000¹ 320 640 120
¹ R101 series enclosures are not stocking items. Please contact Hammond's sales team for more information.

Matching Lid & Body (R102 Series)

Part No. Width (mm) Length (mm) Depth With Lid (mm)
R102-080-000¹ 80 80 40
R102-082-000¹ 80 120 40
R102-084-000¹ 80 160 40
R102-100-000¹ 100 100 54
R102-102-000¹ 100 150 54
R102-104-000¹ 100 200 54
R102-120-000¹ 120 120 66
R102-122-000¹ 120 180 66
R102-124-000¹ 120 240 66
R102-160-000¹ 160 160 66
R102-162-000¹ 160 240 66
R102-164-000¹ 160 320 66
R102-166-000¹ 160 480 66
R102-200-000¹ 200 200 80
R102-202-000¹ 200 300 80
R102-204-000¹ 200 400 80
R102-240-000¹ 240 240 80
R102-242-000¹ 240 360 80
R102-244-000¹ 240 480 80
R102-320-000¹ 320 320 80
R102-322-000¹ 320 480 80
R102-324-000¹ 320 640 80
¹ R102 series enclosures are not stocking items. Please contact Hammond's sales team for more information.

aluNORM Accessories

External Feet Inner Panel 2mm, Hinge
For Use With (Set of 2 or 4) Galvanized Steel (Set of 2)
Enclosure Types Part No. Part No. Part No.
R100, R101 & R102-060 N/A N/A N/A
R100, R101 & R102-062 N/A R507-062-000 N/A
R100, R101 & R102-064 N/A R507-064-000 N/A
R100, R101 & R102-066 N/A R507-066-000 N/A
R100, R101 & R102-080 R501-002-080 R507-080-000 N/A
R100, R101 & R102-082 R501-002-080 R507-082-000 N/A
R100, R101 & R102-084 R501-002-080 R507-084-000 N/A
R100, R101 & R102-100 R501-002-100 R507-100-000 N/A
R100, R101 & R102-102 R501-002-100 R507-102-000 R510-000-000
R100, R101 & R102-104 R501-002-100 R507-104-000 R510-000-000
R100, R101 & R102-120 R501-000-011 R507-120-000 R510-000-000
R100, R101 & R102-122 R501-000-011 R507-122-000 R510-000-000
R100, R101 & R102-124 R501-000-011 R507-124-000 R510-000-000
R100, R101 & R102-160 R501-000-012 R507-160-000 R510-000-000
R100, R101 & R102-162 R501-000-012 R507-162-000 R510-000-000
R100, R101 & R102-164 R501-000-012 R507-164-000 R510-000-000
R100, R101 & R102-166 R501-000-012 R507-166-000 R510-000-000
R100, R101 & R102-200 N/A R507-200-000 R510-000-000
R100, R101 & R102-202 N/A R507-202-000 R510-000-000
R100, R101 & R102-204 N/A R507-204-000 R510-000-000
R100, R101 & R102-240 N/A R507-240-000 R510-000-000
R100, R101 & R102-242 N/A R507-242-000 R510-000-000
R100, R101 & R102-244 N/A R507-244-000 R510-000-000
R100, R101 & R102-320 N/A R507-320-000 R510-000-000
R100, R101 & R102-322 N/A R507-322-000 R510-000-000
R100, R101 & R102-324 N/A R507-324-000 R510-000-000

Need Assistance? Contact Us.

Data subject to change without notice.
